Descriptions
1,Ease of Installation: Simple to install and secure.
2,Customizable Lengths: Can be cut to specific lengths as needed.
3,Low Stretch: Minimal elongation under load, ensuring precision.
4,Balanced Construction: Even distribution of load across strands
5,Twist Resistance: Maintains alignment under tension.
Technical Specification
| Construction |
Diameter Before Coating (MM) |
Diameter After Coating (MM) |
Minimum Breaking Force (KN) |
Reference Weight (KG/1000M) |
|
AISI 304
06Cr19Ni10
|
AISI 316
06Cr17Ni12Mo2
|
| 1×71×7 |
0.60 |
0.80 |
0.382 |
0.333 |
2.2 |
| 0.80 |
1.00 |
0.667 |
0.588 |
3.7 |
| 1.00 |
1.20 |
1 |
0.91 |
5.6 |
| 1.20 |
1.50 |
1.32 |
1.21 |
8.2 |
| 1.50 |
2.00 |
2.26 |
2.05 |
13.4 |
| 2.00 |
2.50 |
4.02 |
3.63 |
22.8 |
| 1×191×19 |
1.00 |
1.20 |
0.95 |
0.814 |
5.6 |
| 1.20 |
1.50 |
1.27 |
1.17 |
8.2 |
| 1.50 |
2.00 |
2.25 |
1.81 |
13.4 |
| 2.00 |
2.50 |
3.82 |
3.24 |
22.8 |
| 2.50 |
3.00 |
5.58 |
5.1 |
34.7 |
| 3.00 |
4.00 |
8.03 |
7.31 |
53.8 |
| 4.00 |
5.00 |
13.9 |
12.2 |
91.3 |
| 7×77×7 |
0.80 |
1.00 |
0.461 |
0.384 |
3.0 |
| 1.00 |
1.20 |
0.637 |
0.599 |
4.6 |
| 1.20 |
1.50 |
1.2 |
0.915 |
6.8 |
| 1.50 |
2.00 |
1.67 |
1.47 |
11.2 |
| 2.00 |
2.50 |
2.94 |
2.55 |
18.8 |
| 2.50 |
3.00 |
4.1 |
3.45 |
28.4 |
| 3.00 |
4.00 |
6.37 |
5.39 |
44.8 |
| 4.00 |
5.00 |
9.51 |
8.9 |
75.3 |
| 7×197×19 |
2.00 |
3.00 |
2.94 |
2.55 |
22.3 |
| 3.00 |
4.00 |
6.37 |
5.39 |
44.8 |
| 4.00 |
5.00 |
10.7 |
9.51 |
75.3 |
| 5.00 |
6.00 |
17.4 |
14.9 |
113.8 |
| 6.00 |
8.00 |
23.5 |
20.8 |
179.0 |
| 8.00 |
10.00 |
40.1 |
36.1 |
301.0 |
| 10.00 |
12.00 |
63 |
55 |
455.0 |
| 12.00 |
14.00 |
85.6 |
75 |
641.0 |
| 14.00 |
16.00 |
123 |
108 |
859.0 |
Functions and Feature
1,High tensile strength due to its 7- strand structure for heavy - load applications.
2,Exceptional corrosion resistance with stainless steel and plastic coating for harsh environments.
3,Good flexibility allowing smooth bending around equipment components.
Stainless steel wire rope
4,Enhanced wear resistance as the plastic layer reduces friction on steel wires.
|
|

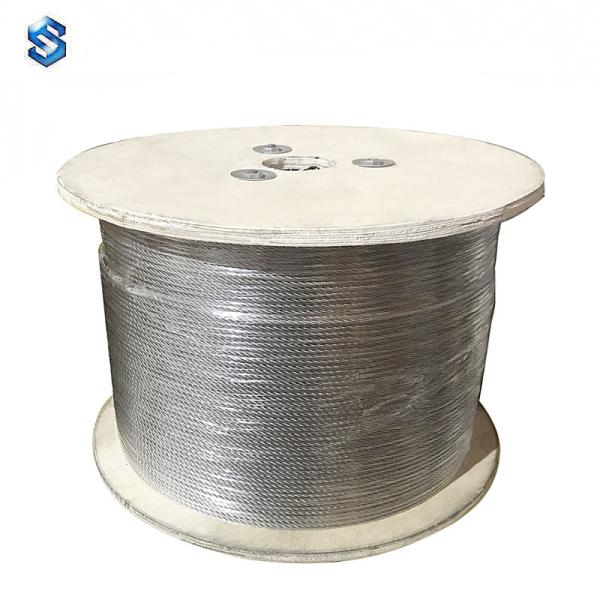

Stainless steel wire rope Images
|
